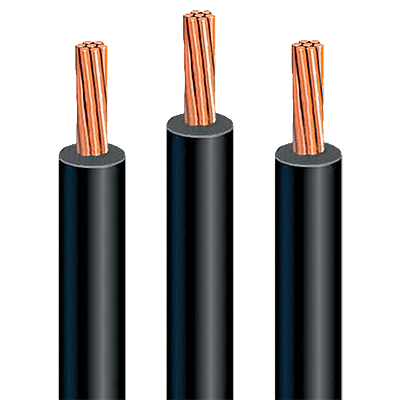

Airport Lighting & Control Cable
FAA L-824 Type C (AC 150/5345-7F)
Airport Lighting Equipment Certification Program per AC150/5345-53 Appendix 3 Underground Electrical Cable for Airport Lighting Circuits per spec L-824 ICEA S-96-659 (NEMA WC71)
FAA L-824 Type C (AC 150/5345-7F)
Airport Lighting Equipment Certification Program per AC150/5345-53 Appendix 3 Underground Electrical Cable for Airport Lighting Circuits per spec L-824 ICEA S-96-659 (NEMA WC71)
Single conductor 5000 volt nonshielded power cables suitable for L-824 underground installation for lighting at airports per FAA L-824 Type C and AC 150/5345-53 Appendix 3. They are rated for use at 90°C wet or dry conditions. FAA L-824 cables are suitable for use in conduit, duct, aerial and direct burial installations.
1. Conductors: Soft drawn stranded bare copper per ASTM B3 and ASTM B8.
2. Insulation: Crosslinked polyethylene (XLPE) 110 mil thick in accordance with NEC 310-6a and ICEA S-96-659. An optional separator tape under the insulation eases stripping.
3. Surface Marking: The jacket surface shall be printed or indented with: DRAKA CABLETEQ USA-PA TAMAQUA CABLE (AWG SIZE) 5 KV XLP NONSHIELD NONJACKET FAA L-824 TYPE C ETL VERIFIED.
Ahmed Basheer
Products
Check Out the featured products of today!
Medium Intensity Elevated Lights
Flight Light L-861 elevated lights are used on runways, taxiways and runway thresholds/ends. Each fixture is constructed from a die cast aluminum body, powder coated in aviation yellow. L-861s are available with either quartz halogen lamps (rated for 1,000 hours) or T10 lamps (rated for 2,000 hours) in both 30 and 45 watt power options. A glass Fresnel type lens is secured with a replaceable O-ring and a stainless steel clamp band. The clamp band provides easy access for effortless lamp servicing. A rugged cord is included with rubberized L-823 style connector to connect to the secondary of a 6.6A isolation transformer.
Touch Down Zone Inset Light
FAA Compliant: L-850A, L-850B
AC 150/5345-46D
NATO Stanag 3316
ICAO Annex 14
Category I, II and III all weather operation airfield lighting systems.
Suitable for use as high intensity inset runway centerline and touch down zone lights.
FEATURES
• Lightweight and robust aluminum alloy construction.
• Prism removal and replacement achieved without need for adhesives or sealants.
• Pre-focused optics simplify maintenance.
• Pressure test plug ensures moisture-proof light cavity.
• Installation and maintenance manual AVD 104.
Airfield Lighting Control Panel
FAA AC 150/5345-3F
Certified L-821
APPLICATION
Our L-821 control panels provide smaller airports complete airfield lighting control. Relays, switches and human interfaces are all combined into one compact unit for most applications, thereby eliminating additional panels and providing a clean and economical installation.
