Medium Intensity Elevated Lights

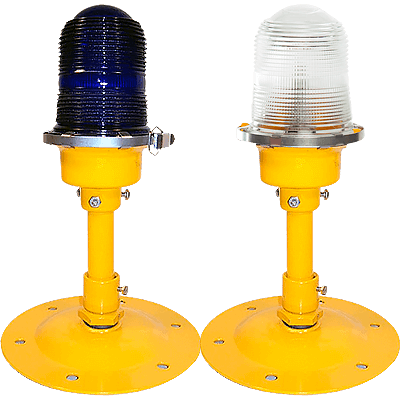

Flight Light L-861 elevated lights are used on runways, taxiways and runway thresholds/ends. Each fixture is constructed from a die cast aluminum body, powder coated in aviation yellow. L-861s are available with either quartz halogen lamps (rated for 1,000 hours) or T10 lamps (rated for 2,000 hours) in both 30 and 45 watt power options. A glass Fresnel type lens is secured with a replaceable O-ring and a stainless steel clamp band. The clamp band provides easy access for effortless lamp servicing. A rugged cord is included with rubberized L-823 style connector to connect to the secondary of a 6.6A isolation transformer.
Flight Light L-861 elevated lights are used on runways, taxiways and runway thresholds/ends. Each fixture is constructed from a die cast aluminum body, powder coated in aviation yellow. L-861s are available with either quartz halogen lamps (rated for 1,000 hours) or T10 lamps (rated for 2,000 hours) in both 30 and 45 watt power options. A glass Fresnel type lens is secured with a replaceable O-ring and a stainless steel clamp band. The clamp band provides easy access for effortless lamp servicing. A rugged cord is included with rubberized L-823 style connector to connect to the secondary of a 6.6A isolation transformer.
The L-861 includes a 1.5″ (standard) or 2.0″ frangible coupling to attach the fixture to a L-867 style base plate or mounting stake. Standard mounting heights are 14, 24 and 30 inches. The fixture head is secured to the riser using three bolts to allow for leveling if necessary.
Products
Check Out the featured products of today!
Medium Intensity Elevated Lights
Flight Light L-861 elevated lights are used on runways, taxiways and runway thresholds/ends. Each fixture is constructed from a die cast aluminum body, powder coated in aviation yellow. L-861s are available with either quartz halogen lamps (rated for 1,000 hours) or T10 lamps (rated for 2,000 hours) in both 30 and 45 watt power options. A glass Fresnel type lens is secured with a replaceable O-ring and a stainless steel clamp band. The clamp band provides easy access for effortless lamp servicing. A rugged cord is included with rubberized L-823 style connector to connect to the secondary of a 6.6A isolation transformer.
Touch Down Zone Inset Light
FAA Compliant: L-850A, L-850B
AC 150/5345-46D
NATO Stanag 3316
ICAO Annex 14
Category I, II and III all weather operation airfield lighting systems.
Suitable for use as high intensity inset runway centerline and touch down zone lights.
FEATURES
• Lightweight and robust aluminum alloy construction.
• Prism removal and replacement achieved without need for adhesives or sealants.
• Pre-focused optics simplify maintenance.
• Pressure test plug ensures moisture-proof light cavity.
• Installation and maintenance manual AVD 104.
Airfield Lighting Control Panel
FAA AC 150/5345-3F
Certified L-821
APPLICATION
Our L-821 control panels provide smaller airports complete airfield lighting control. Relays, switches and human interfaces are all combined into one compact unit for most applications, thereby eliminating additional panels and providing a clean and economical installation.
